Product Description

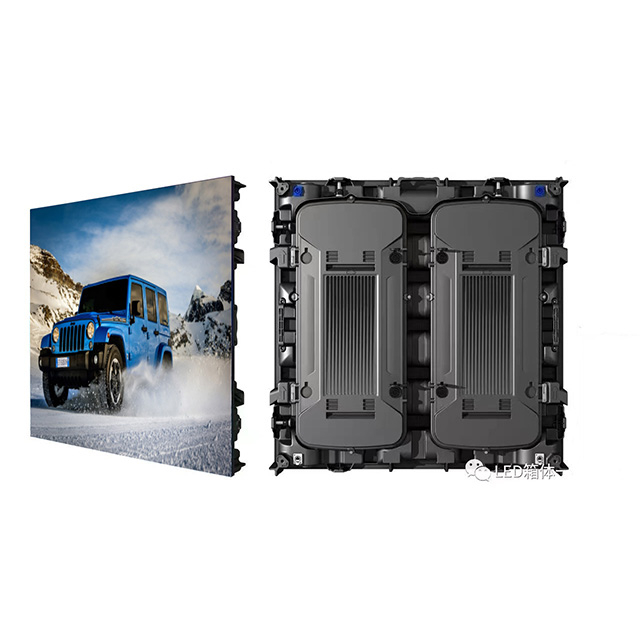

P4 outdoor LED display, its pitch is 4mm and 62500 pixels/square meter, with high refresh rate, waterproof and work under sunlight, widely used in schools, shopping malls, highway, street advertisements, airport, and other places, it's the mainstream product in the outdoor LED display screen market currently.
Product Advantages
1、P4 Outdoor LED display is with high brightness, with a general brightness of 5500cd It can be clearly visible even under strong light, and the display effect is good.
2、 Big led screen adopts a waterproof and dustproof design, with strong UV resistance and a protection level of IP65 or above. It can withstand various adverse weather conditions such as rain, frost, strong winds, etc.
3、 Long service life, under appropriate current and voltage, the service life of a typical LED can reach 100000 hours. Considering the different usage environments of digital led display screen and the influence of environmental factors, the service life of the display screen is generally less than 10 hours, but it can still be achieved after around 60000 hours.
4、 Achieve seamless splicing and high Refresh rate. Compared with LCD splicing,large outdoor advertising led screen will not have gaps, and the displayed effect is more beautiful. Moreover, outdoor LED screen has a higher refresh rate, and the entire screen display is more exquisite, and the overall visual effect is more shocking and gorgeous!
Product parameters

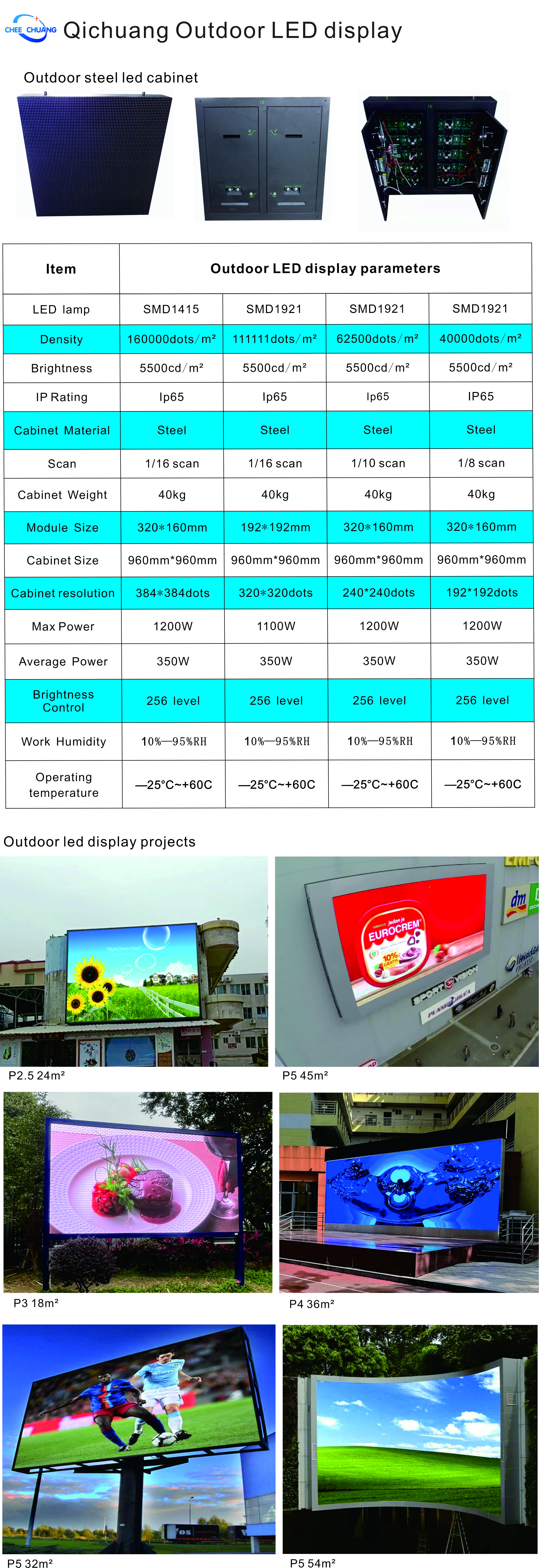

P4 Outdoor led display parameters
Pitch Size | 4mm |
Module Size | 320*160mm |
Module Pixel(dots) | 80dots*40dots |
Pixel Configuration | 1 Red, 1 Green, 1 Blue SMD 3-in-1 |
Color scale | 65536degree/16777216colors |
Pixel density | 62500pixels/square meter |
View angle(H/V) | ≥160/140degree |
Brightness | ≥5500cd/square meter |
Brightness adjustment | 64 level automatic or manual |
View distance | 3--200m |
Power consumption | 100-1200W/square meter |
Net weight | 40kg/square meter |
Operating temperature | —25°C~+60°C |
Operating humidity | 10%—95%RH |
Life time | ≥100,000hours |
Out of control dot | ≤1/10,000 |
Whole Display Flatness | ≤1mm Juncture |
Exchange frame speed | >150frames per second |
Refresh frame frequency | 1920Hz-3840Hz |
Control distance | 120m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
Power | 110V/220V±15% 50Hz/60Hz |
Operating system | Windows series |
Drive mode | constant current driving, 1/10 scan |
Display mode | VGA640X480—VGA1600X1024 |
Protection Level | IP65 |
Maintenance way | Rear access |
Accepting signal | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
Product uses
1. Advertising field: outdoor billboards, billboard stations, large advertising display areas, etc.
2. Commercial center: advertising of shopping malls, shopping centers, commercial streets, etc.
3. Entertainment venues: outdoor cinemas, concerts, sports events, entertainment venues, etc.
4. Transportation: Timetables and information for bus stop signs, subway stop signs, train stations, airports, etc
Display, advertising, etc.
5. Building exterior walls: Advertising and publicity for large building exterior walls, commercial building exterior walls, etc.
6. Urban roads: road condition information, driving safety tips, public welfare promotion, etc.
